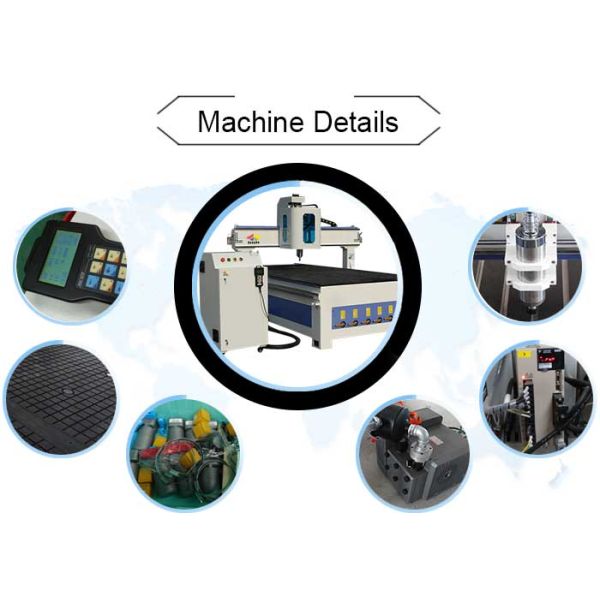

Yaskawa Servo Motor And Driver CNC 3D Router Machine For Don't Lose Step
This type cnc engraving machine is installed Yaskawa servo motor to keep all the step to increase the accuracy.
Advantage:
1. Simple structure in linear type ,easy in installation and maintenance;
2. Yaskawa Servo motor and driver very stable quality and cost performance;
3. The gantry and the Z axis with scientific design. Can be with multi-spindle like three spindles;
4. Rack have the characteristics of high speed, high efficiency, high rigidity, high-precision, low noise, low maintenance, heavy-duty, long life;
5. Fine and strong drag chain are used on the machine, showing better protection to cable and wire.
| Model | DHRM-1325 |
| Table Size | 1300 mm * 2500 mm * 200 mm |
| Motor And Driver | Yaskawa servo motor and driver |
| Table Type | Vacuum Table with 8 Zones |
| Spindle | 3.0 KW Water Cooling Spindle |
| Inverter | 5.5 KW Delta Inverter |
| Control System | Weihong DSP Control System |
| Rail | PTM 20mm square rail |
| Body Structure | Heavy duty body |
| X,Y Axis Transmission | Gear And Rack Transmission |
| Z Axis Transmission | Ball Screw Transmission |
| Others | USB interface, Filter, tool sensor, etc |
Weihong NK105 DSP Control System
Weihong NK105 is widely adopted in general type cnc rotuer. It has friendly interface, easy operater, support breakpoint processing, could support Chinese, English, Polish and Vietnamese. It powerful NC software alarm could support program error, operation error, overtravel error, PLC error, IO communication error etc, could protect the machine very well.
YASKAWA Servo Motor and Driver
Compare with stepper motor and driver, Servo motor has lots of good functions.
Better working accuracy, no vibration phenomenon in low speed, constant torque output in higher speed, strong overload ability, more reliable and much faster responding speed. Servo motor and driver is sutable for high end CNC router for higher request.
Vacuum Table
Our vacuum table is made by aluminum and covered by double hard PVC layer. Don’t need human fix the material and absorb the material automatically. We usually adopt 6 zones vacuum table, and could make customized type according your need.
